|CW27A2825CT| 27.5er clincher tubeless compatible hookless asymmetric 3mm mountain bike carbon rims advanced tech made from China

Asymmetry 27.5er MTB carbon rims 28mm width 25mm depth hookless clincher tubeless design available for XC racing.
Price:
USD
$149.00
$168.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    12K twill
  • Finish:
    Matt
    Glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Version:
    Standard 345g
    Superlight 275g
  • Holes:
    24
    28
    32
    36
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(1000 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews

Basic info:

  • Item No.: CW27A2825CT
  •
  • Material: Toray T700/T800+T700 Carbon Fiber
  •
  • Rim Type: Hookless Clincher tubeless compatible
  •
  • Warranty: 3 Years

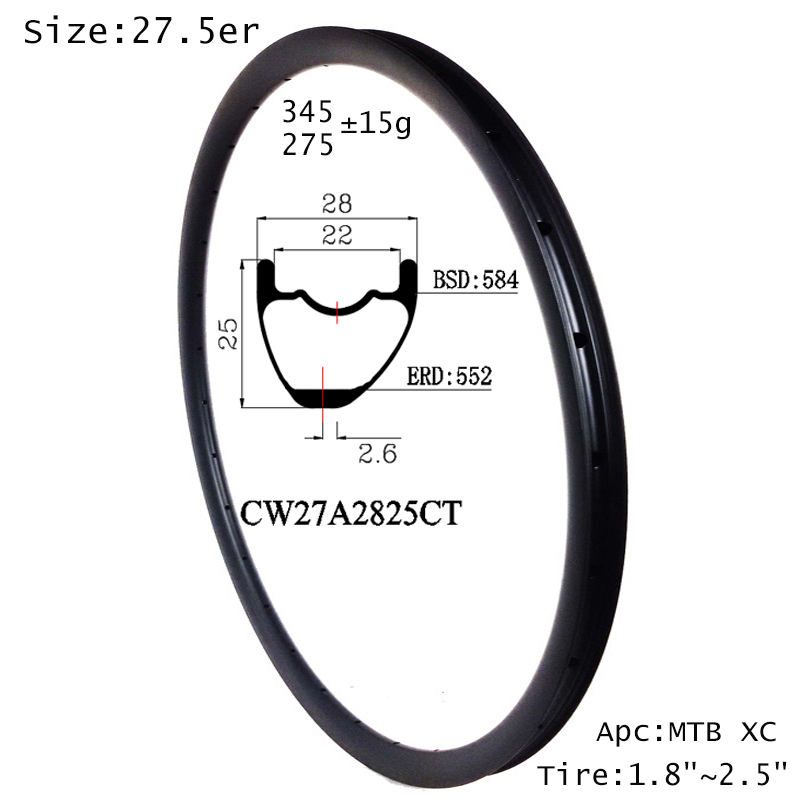

Dimension:

  • Size: 27.5er

    BSD: 584mm



  • ERD: 552mm

    External Width: 28mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth: 25mm



  • Internal Width: 22mm

    Valve Hole Dia.: 6.5mm


    Hole count: 24, 28, 32, 36

    Assembly Hole Dia.: 7.5mm



  • Weight: 345+/- 15g pcs (Standard XC),275+/- 15g pcs (Ultralight)

    Recommendation  data:

  • Tire Size: 1.5" ~2.2"

    Max Spoke Tension: 110kgf



  •  Weight Limit: 110kg

    Max Tire Pressure: 65psi

    Appearance:

    Weave: UD/3K/12K/3K twill/12K twill

    Finish: Matte / Glossy


Application:

XC racing/ (cross country)

Feature:

  • Clinhcer tubeless Compatible designed: This function means you can install clincher or tubeless two kinds of tyres are all perfectly.

Tech improvements:

* The ultralight version is new tech designed,(50% T800 and fixed T700 another) With Toray T800 carbon fiber it has more strongth and smaller density,but still keep T700 carbon weave with good tenacity characters.So the rims with more stronger,lighter,and durable.And strand version,just normal T700 carbon fiber,so it can do any carbon weave.

Ps: But ultralight version just can be do UD carbon weave,so if you need to ultralight/super light vesion,plz just choose UD carbon weave.

* Single layer technical made,is the latest generation process made of the carbon rims,whether from inner and outside layers are all use one piece carbon fiber,so the rim will have good strength,and light weight.



* 27.5 plus 28mm width 25mm depth asymmetry mountain carbon rim it's our light types and was designed according to the latest trend. By getting ride of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  Hookless: By getting rid of the hook from the top of the rim sidewall, the rim wall became smooth and straight, it is easy to install a tire, and the tire and rim will work perfectly to create a seal. So riders are allowed to run lower tire pressure without the risk of air loss or pinch flats.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.
