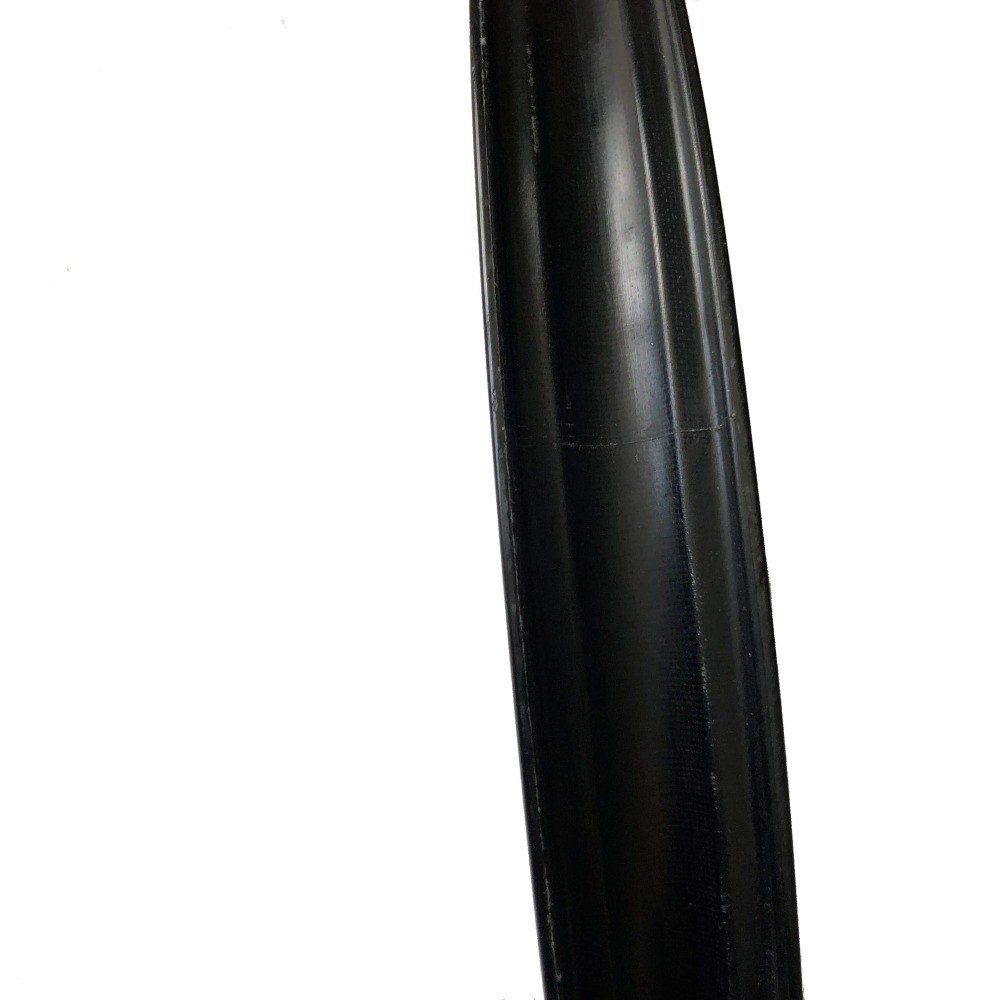

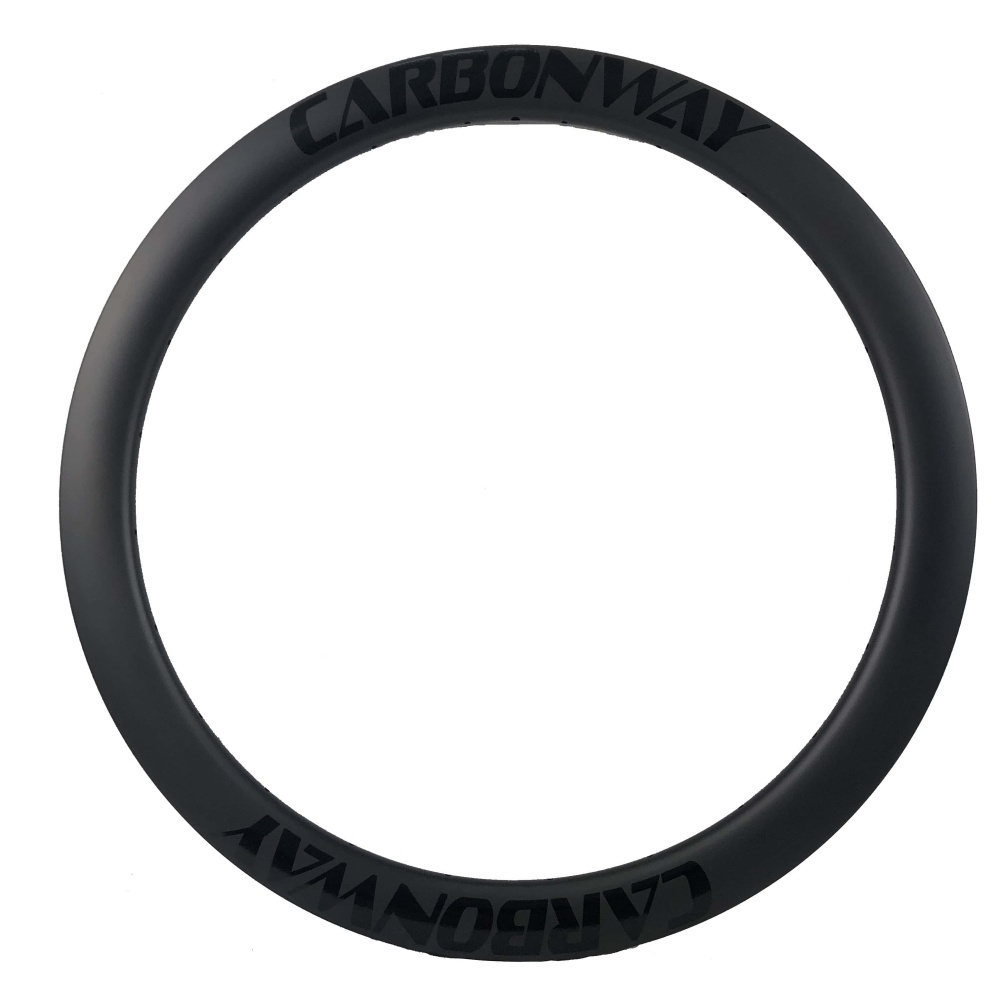

|CW36-40CT| Carbon bike rims 455g ultralight 700C lighter-faster Wider cycling wheel Tubelss tires 36mm width 40mm depth clincher tubeless tires

700C 455g U shape external 36mm internal 29mm depth 40mm clincher tubeless tubeless tire ERD 559mm V brake/Disc brake road bike carbon rim.
Price:
USD
$179.00
$197.00
    Please select the information you wantX
  • Weave:
    UD
    3K
    12K
    3K twill
    3K twill
    12K twill
    Marble
  • Finish:
    Matt
    Glossy
    50% matt
    Paintless Matt
    Paintless Glossy
  • Holes:
    16
    18
    20
    21
    24
    28
    32
    36
    21G3
  • Brake system:
    Disc brake (none brake suface)
    V brake
  • Spokes holes type&Diameter:
    Standard holes(Outer holes 8.5mm+Inner holes 4.5mm)
    Without outer holes(No need rim tapes Inner holes 4.5mm)
    Internal nipples holes(Outer holes 8.5mm+Inner holes 2.5mm)
Quantity:
-
+
(996 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews(1)

Basic info:

  • Item No.: CW3640CT
  •
  • Material: Toray T800+T700 Carbon Fiber
  •
  • Rim Type: Clincher tubeless compatible
  •
  • Warranty: 3 Years
  •
  • Standard: EN Standard

Dimension:

  • Size: 700C

    BSD: 622mm (ISO Standard)



  • ERD: 559mm (Not inclued nipples hed)

    External Width: 36mm



  • Spoke Hole Dia.: 4.5mm / 2.5mm

    Depth:40mm


    Internal Width: 29mm

    Valve Hole Dia.: 6.5mm

    Hole count: 16,18,20,21,24, 28, 32, 36, 21 G3

    Assembly Hole Dia.: 7.5mm


    Weight:455+/- 10g pcs

  • Recommendation  data:

  •  Max Spoke Tension: 130kgf


  •  Weight Limit: 90kg

    Max Tire Pressure: 130psi

Application:

  • Road / Cyclocross / Triathlon / Time Trial (TT)

Appearance:

Weave: UD/3K/12K/3K twill/12K twill

Finish: Matte / Glossy/ 50% Matt/Paintless Matt/Paintless Glossy


Feature:

  • Tubeless compatible all size tyres designed: This means can been mount clincher/tubeless tires.

Tech improvements:

This widest crbon rim with 36mm tire width 40mm depth, have a wider spacing between the bike rim than traditional V-shaped rims, thanks to a slight widening of the rim, they are much stiffer. With a slightly angled brake track, they have better braking. And they are lightweight, fast, when hit a few windy sections, it could not fell a thing in the cross winds.

*  Finish not only have supply normal matt/glossy,but also have supply paintless matt/paintless glossy (Newest upgraded production tech supply),paintless looks clear a bit than normal matt/glossy,near to the original suface,better appearance,and more environmental protection.



*  40mm depth rim has excellent performances in climbing and acceleration with the advanced aerodynamics, it is ideally suited for racing and triathlon. Its stiff construction offer the ability to maintain higher speed and good cornering grip.



*  High TG 240 degrees and high heat-resistant basalt braking surface improve heat dissipation, effectively reduce the impact in heat caused by braking to provide you with reliability and stopping power.



*  Filled with 3D weave, that will make the rim stable, safe and durable.



*  Manufactured by new technology, the rims’ manufacturing process are without EPS bubbles, this means the rims are molded with a air bag that has the inner shape of the rim. Unlike the traditional technology, we don’t need to cut a lid to take out the bubbles. So the rim is complete, stronger and stiffer.



*  250Gpa modulus carbon fiber reinforcement strip gives additional stiffness on spoke holes.

Rim section:
